Project Overview
A medium-scale intelligent computing data center with total cabinet heat load of 4200 kW, requiring 24/7 continuous heat rejection. Located in northern China, the site faces freezing risk in cold winter months. Open cooling tower was initially considered, yet it risks scaling and particle contamination for liquid cooling loops, with heavy maintenance work and strict PUE control requirements.
Key Challenges
High cleanliness requirement for server liquid cooling circulating fluid
Risk of coil freezing during long cold winter periods
Need to utilize free air cooling to lower overall PUE
Limited installation footprint
Solution

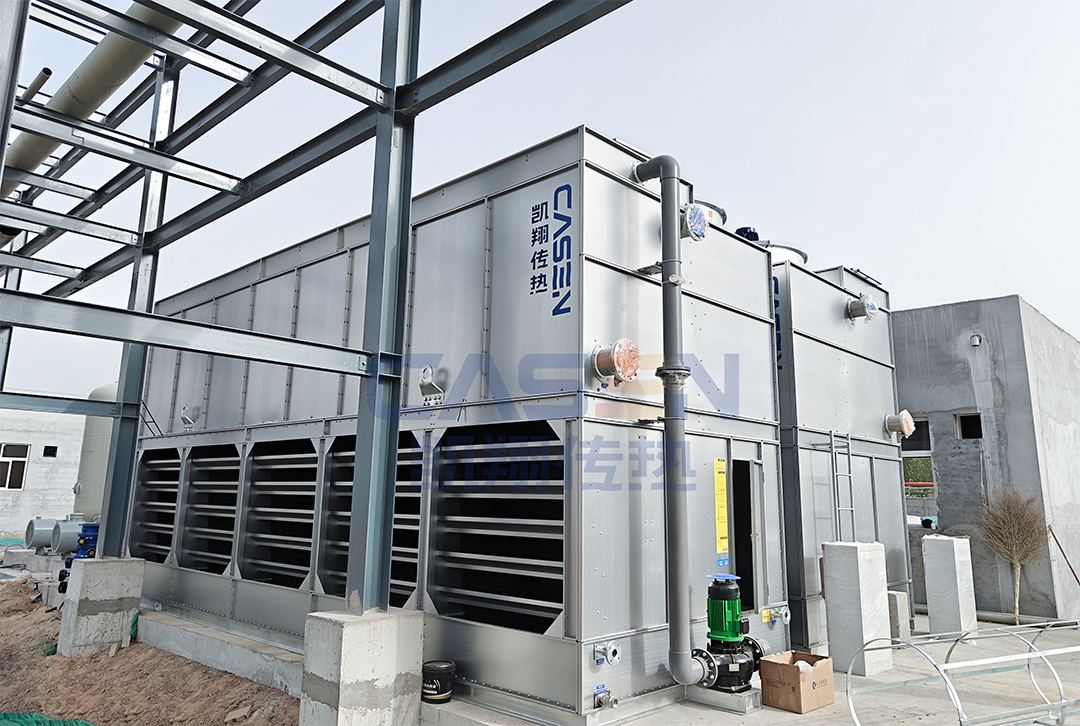

6-unit modular counter flow closed circuit cooling towers (5 working + 1 standby for redundancy).
1.Fully sealed coil loop isolates process fluid from spray water, preventing dirt and scale entering IT liquid cooling circuits.
2.VFD driven fans & spray pumps adjust output based on ambient wet bulb temperature and real time server heat load. Dry mode operation activates in cold seasons against freezing risk.
3.316 stainless steel coils, anti clog spray nozzles and integrated filtration & water treatment assemblies equipped.
4.Service access doors allow unit by unit maintenance without full system shutdown.
5.Connectable with data center BMS system for remote monitoring of temperature, fan and pump status.
Project Outcomes
Stable 24-7 heat rejection, zero server downtime caused by cooling system failure.
Effectively utilize free cooling; overall data center PUE maintains below 1.26.
Minimal scaling inside closed loop, chemical water treatment consumption and maintenance workload drop by ~38%.
Dry-mode operation in winter reduces spray water consumption, achieving around 65 % water saving rate.
Modular redundant setup enables individual unit service without interrupting overall data center heat dissipation.
