Product Details
Customization:Available
Type: Air-Cooled
Cooling Water: Industrial Water
Basic Info.
Model NO. | Casen | Type | Air cooler |
Material | Galvanized or Stainless Steel | Application Field | Refrigeration |
Certification | ISO, CE, SGS | Condition | New |
Casing | Galvanized or Stainless Steel | Specification | 100 ton |
Transport Package | Container | Origin | China |
HS Code | 84198990 | Production Capacity | 200 Sets/Month |
Products1 | Air Condition | Products2 | Air Conditioners |
Package Size | 600* 300* 600cm | Package Gross Weight | 8000kg |
Product Description
Product Features：

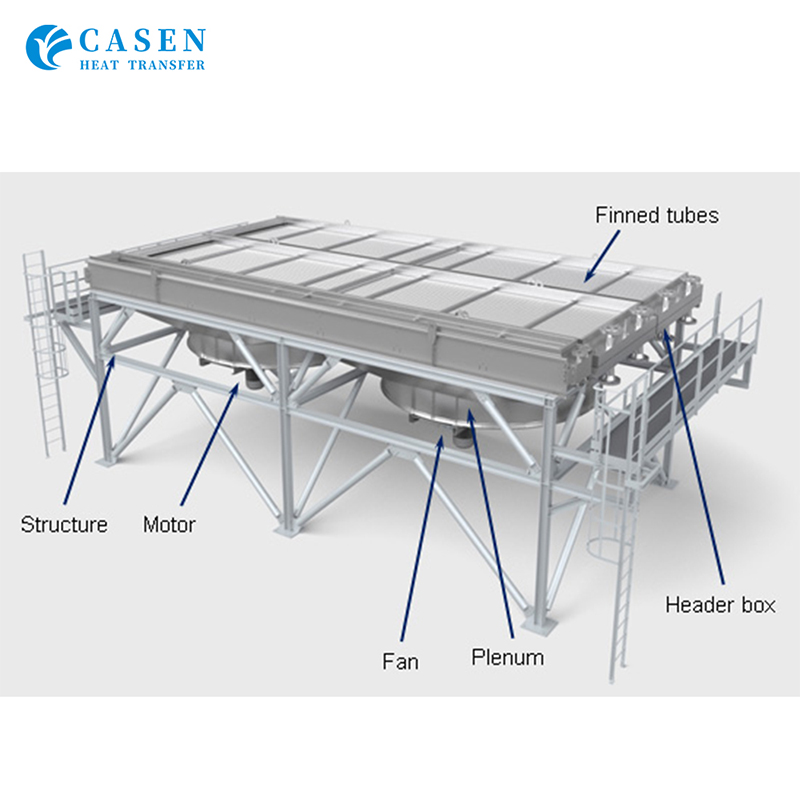

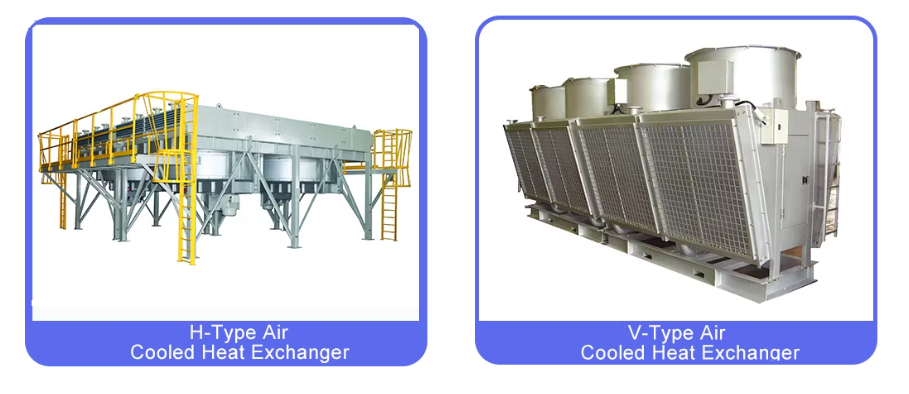

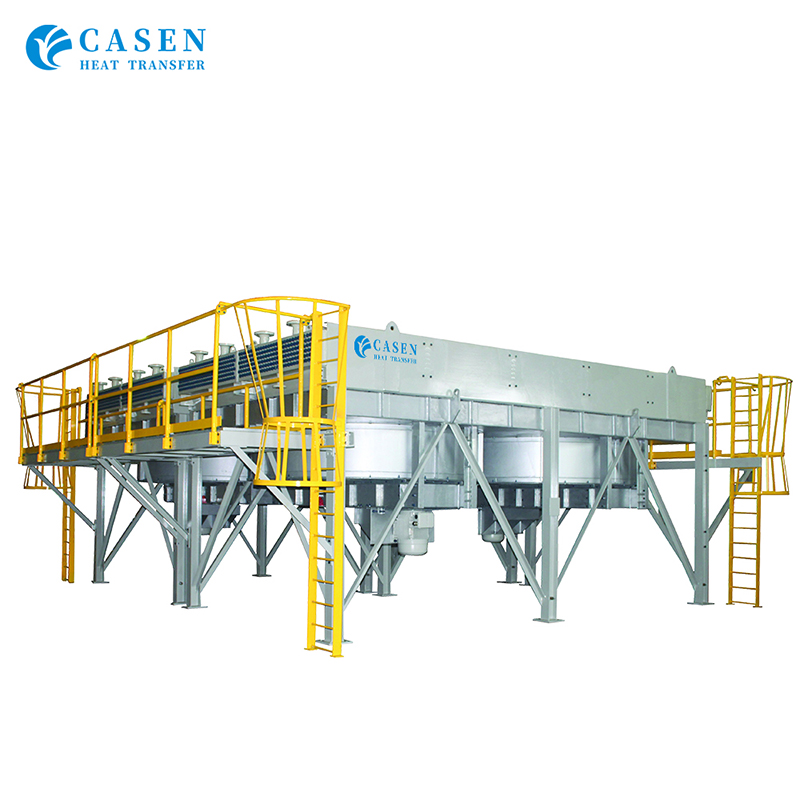

H-Type Air Cooled Exchanger uses ambient air as the cooling medium and sweeps the outside of the finned tube to cool or condense the high-temperature process which fluid in the tubes.Its advantage lies in not only saving precious water Resources can also reduce water pollution. In addition, it has the advantages of low maintenance cost, safe and reliable operation, long service life, and free of scaling. According to the different structure, it is divided into induced draft type, forced draft type, pent-roof type, tombined type etc.

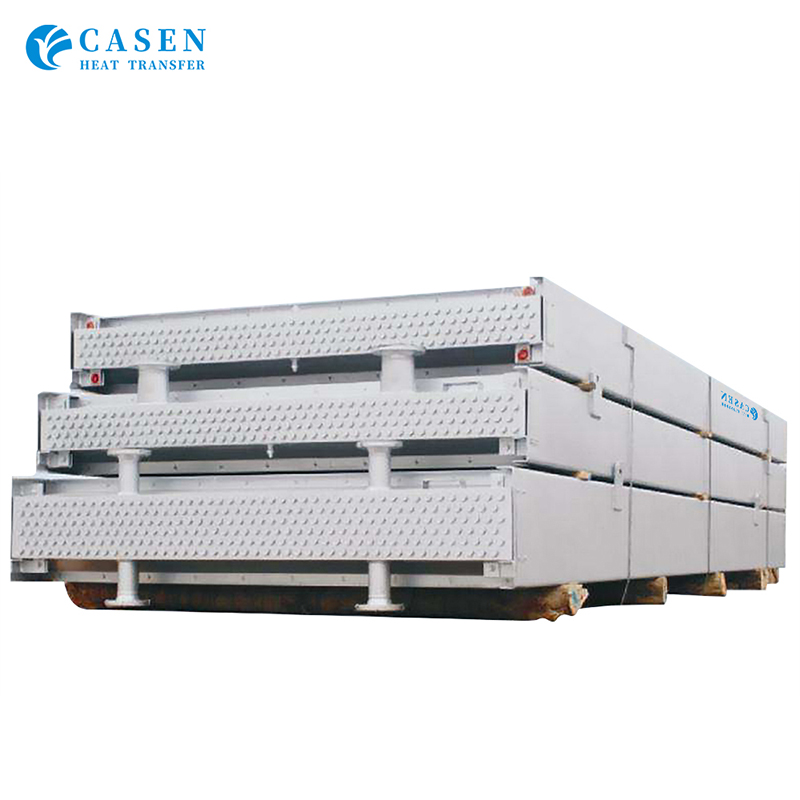

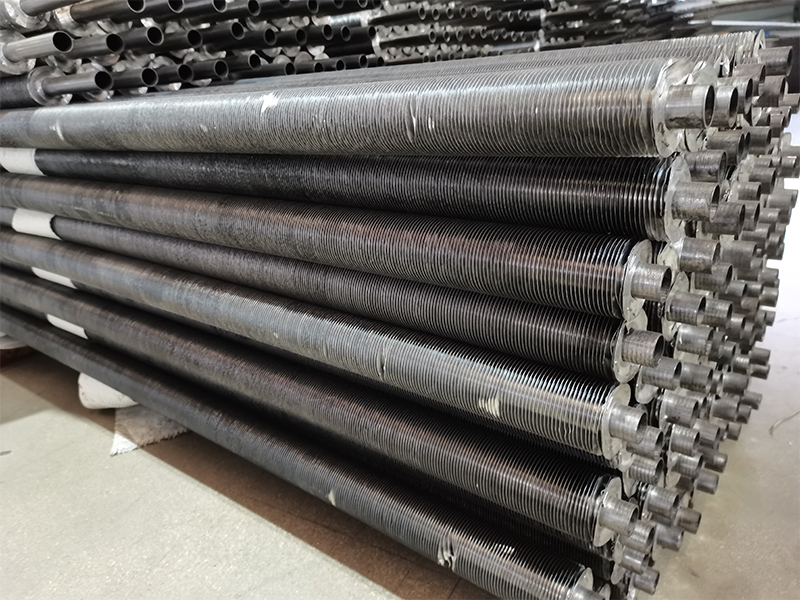

For the tube bundle there are variety of materials available for option, and CASEN engineers will recommend it according to the composition of the process fluid medium, operating pressure, surrounding environment, customer requirements and other comprehensive factors.

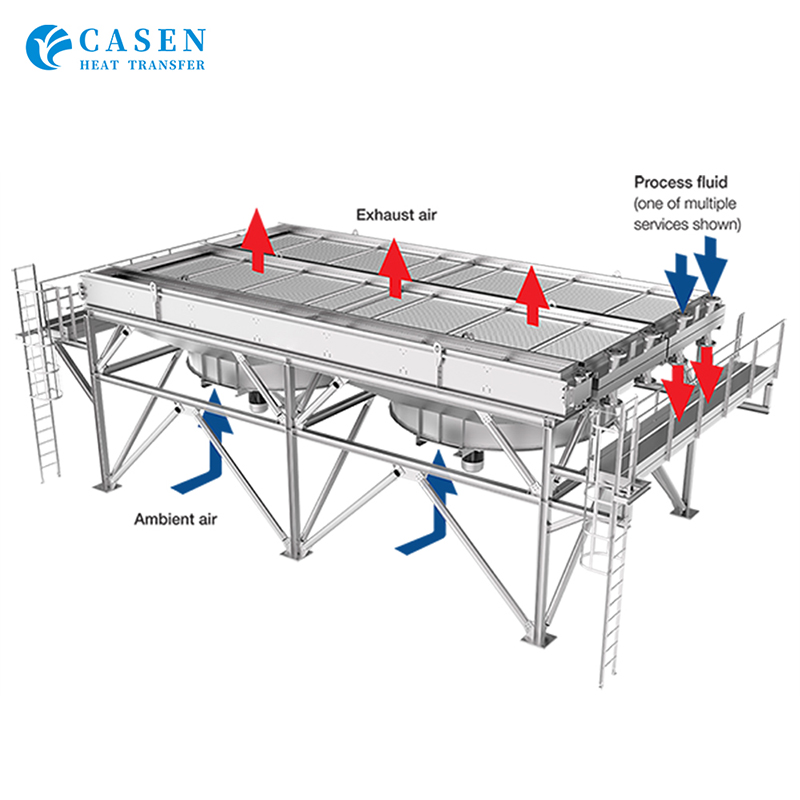

Operating Principle
Specification
Regulation model | Heat exchange area m² | Dimensions of the shape
| Mass (in kilograms) | ||||
Fill with water | Metal | ||||||
A | B | C | "L, DR type fins" | "L-shaped fin" | "DR type | ||
GP6×3-6-128-1.6S-23.4/[]-Ⅰa | 128 | 6092 | 2985 | 1500 | 701 | 5922 | 6697 |
GP6×3-8-171-1.6S-23.4/[]-Ⅰa | 171 | 6092 | 2985 | 1500 | 939 | 7605 | 8639 |
GP3×3-4-42-1.6S-23.4/[]-Ⅰa | 42 | 3092 | 2985 | 1500 | 269 | 2632 | 2865 |
GP3×3-6-63-1.6S-23.4/[]- Ⅰa | 63 | 3092 | 2985 | 1500 | 437 | 3673 | 4022 |
GP3×3-8-84-1.6S-23.4/[]-Ⅰa | 84 | 3092 | 2985 | 1500 | 597 | 4660 | 5126 |
Product Details
The condensing coil and the intemalferrous metal components areprocessed by hot-dip galvanizing,which has good anti- corrosionperformance and long service life.
a.No thermal and chemicalpollution to the environment
b. Especially suitable for areaswith water shortage
c. Air is freely available withoutany auxiliary equipment or cost
d. Site selection is not restricted
