Product Details
Customization: Available
After-sales Service: Oversea Engineer Service Available
Warranty: 24 Month
Shipping
Shipping Cost:Contact the supplier about freight and estimated delivery time.
Basic Info.
| Model NO. | Closed Cooling Tower | Cooling Method | Cross Flow |
| Ventilation Mode | Mechanical Ventilation | Material | Metal |
| Air Contact Form | Wet | Air Contact Way | Closed |
| Tower Shape | Square | Noise Level | Low |
| Application Fields | Industrial | Certification | ISO, CE, SGS, TUV |
| Condition | New | Draft | Induced Draft |
| Coil | Ss/HDG/Red Copper | Drift Eliminator | CPVC/PP |
| Drift Rate | Less Than 0.002% | Infill | PVC Fill |
| Eliminator | PVC/PP/Steel | Driven System | Weg Motors |
| Fan | Axial Flow Type, Maintenance Free | Spraying Pump | Low Head Lift, Large Flow Rate |
| Package Size | 218*220*375cm | Package Gross Weight | 10000kg |
Product Description
CROSS FLOW CLOSED TYPED COOLING TOWERS
Closed Circuit Cooling Tower Product Introduction
Closed Circuit Cooling Tower is a high-efficient heat exchanger equipment, the cooling medium flow inside of the coil, which be cooled by fresh air and spraying water, and sensible heat and latent heat transfer acted simultaneously. And it could ensure that the cooling medium is pure and pollution-free, and greatly reduce the scaling risk of cooled equipment and pipelines. Closed circuit cooling tower is widely used in following industries: Injection molding, Central air-conditioning, Oil and gas, Foundry industry, Process fluid, Metrology testing, New energy industry, Industrial furnace, etc.

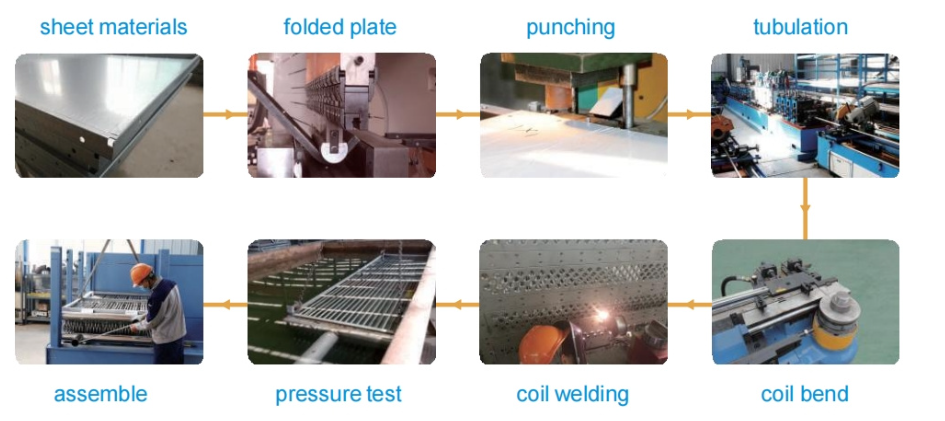

PRODUCT MANUFACTURING PROCESS TECHNOLOGY
CASEN Closed Circuit Cooling Tower is a standard unit constructed to provide many years of durable, dependable service with minimal maintenance requirements. Quality materials and workmanship are a key factor in meeting this objective. All units are completely factory assembled and tested to ensure a quick and easy installation and reliable operation.

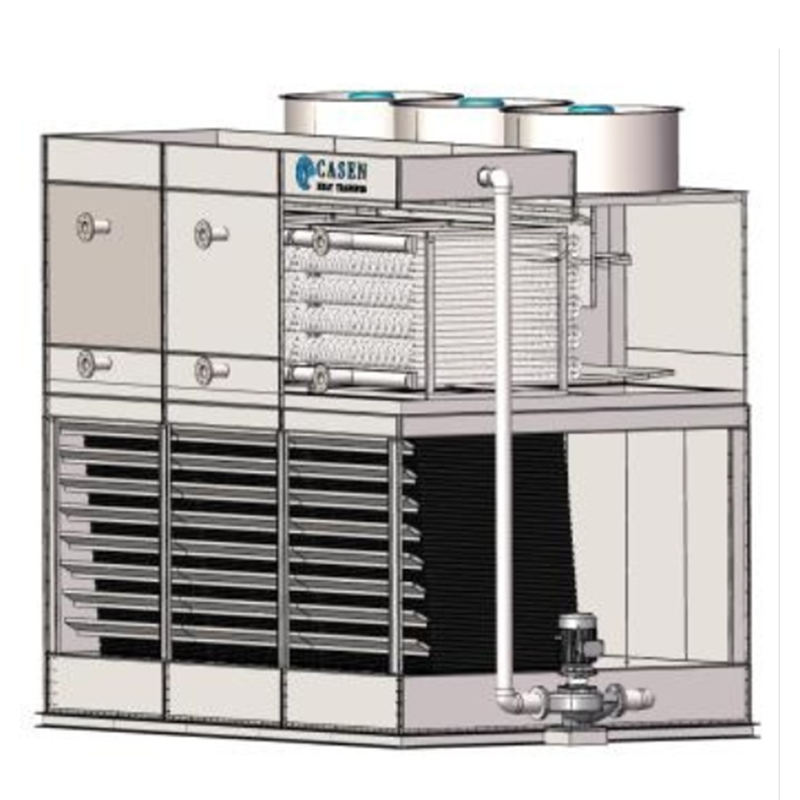

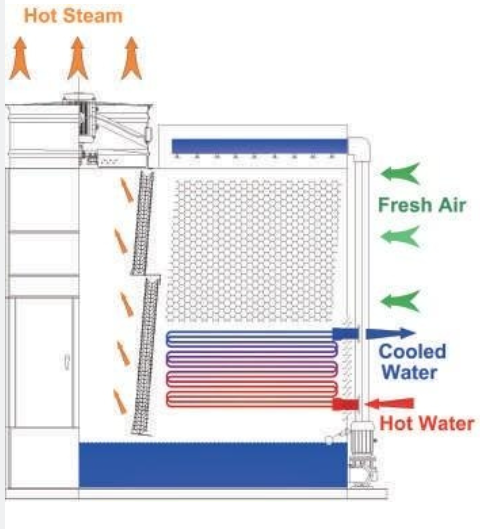

PRINCIPLE OF OPERATION
The hot water enters the heat exchange coil at the bottom of the unit. Cooled water from the unit basin is pumped and sprayed over the heat exchange coils, and ambient air is simultaneously drawn into the unit from both side of fill and coil, that is cross flow to the spraying water. With less wind resistance, the heat rejection can be increased significantly. KCH condensing process is similar to KCF type.
SPECIFICATION
Model | Flow Rate | Fan | Dimension | ||||
Qty | Power | Air Volume | A | B | H | ||
m3/h | set | KW | m³/h | mm | mm | mm | |
KCN-20R | 12 | 1 | 1*1.1 | 1*15000 | 1830 | 1190 | 2966 |
KCN-23R | 14 | 1 | 1*1.1 | 1*15000 | 1830 | 1190 | 2966 |
KCN-26R | 16 | 1 | 1*1.1 | 1*15000 | 1830 | 1190 | 3164 |
KCN-30R | 18 | 1 | 1*1.5 | 1*18500 | 1830 | 1190 | 3164 |
KCN-36R | 22 | 2 | 2*1.1 | 1*15000 | 1830 | 2200 | 2966 |
KCN-43R | 26 | 2 | 2*1.5 | 2*18500 | 1830 | 2200 | 2966 |
KCN-50R | 30 | 2 | 2*1.1 | 2*15000 | 1830 | 2200 | 2966 |
STANDARDIZED AND DURABLE PARTS
We uses high quality components to meet strict technical specifications and operation in the most demanding conditions. And we off er 18 months warranty to guarantee performance well at the beginning.
INSTALLATION PROCEDURE
COMPANY PROFILE
Shandong Casen Heat Transfer Technology CO,.Ltd
Over the past decade, CASEN has rapidly developed in industrial evaporative and air-cooled cooling, committed to delivering high-quality, customized solutions. Our passionate, professional, and efficient team has earned strong customer trust and recognition.
CASEN upholds a culture of integrity, loyalty, and customer-first values. We believe customer satisfaction ensures sustainable growth, and we never take trust for granted. Innovation and environmental responsibility are at the heart of our development—driving energy-saving technologies and reducing carbon emissions.
With over 1,000 cases across industries, CASEN offers intelligent, energy-efficient solutions tailored to customer needs. We aim to make your work easier and the world greener, consistently delivering reliable, forward-thinking services. Thank you for your continued trust and inspiration.
