Product Details
Customization: Available
Cooling Method: Cross Flow
Ventilation Mode: Natural Ventilation
Basic Info.
Model NO. | KEH | Material | Metal |
Air Contact Form | Wet and Dry | Air Contact Way | Closed |
Tower Shape | Square | Noise Level | Low |
Application Fields | Industrial | Certification | ISO, CE, SGS |
Condition | New | Water Pump | High Flow, Low Head Lift |
Fan | Low Noise | Casing | Stainless Steel or Galvanized |
Coil | Stainless Steel or Galvanized | Spray Head | Qualified PVC and ABS |
Water Tank | Stainless Steel or Galvanized | Products | Cooling Tower Industrial |
Package Size | 218*220*490cm | Package Gross Weight | 3000kg |
Product Description

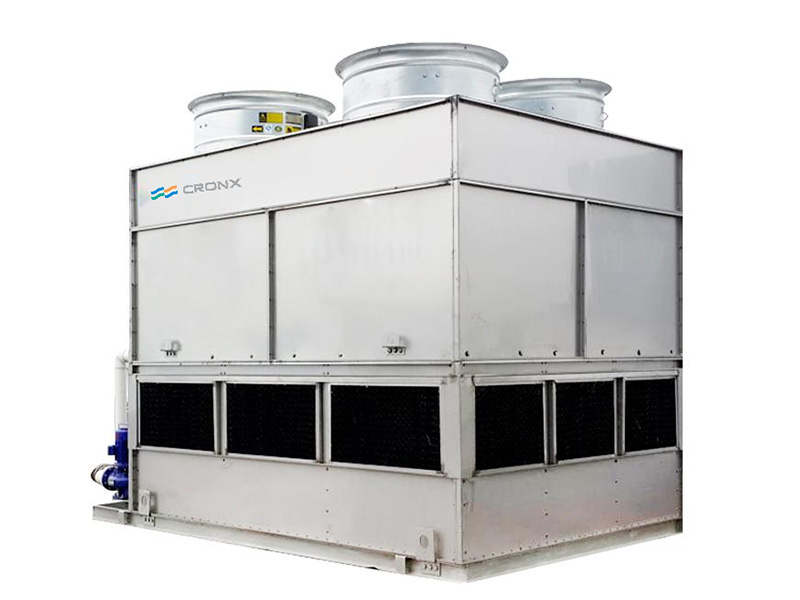

KEN- COUNTER FLOW TYPE EVAPORATIVE CONDENSER
As a typical counter flow evaporative condenser, KEN evaporative condenser offered excellent heat transfer ability. Compact structure design and lower power, make it easier for the confined space shipment and installation. KEN evaporative condenser can be used in all outdoor applications, especially in high temperature fluid process and dirty environment. And the unit can also operate in dry mode without water during low load and cold weather.
SPECIFICATION
Product Characteristics and Advantages
Closed Circuit Crossflow Evaporative Cooling Tower for Water Cooled Screw Chiller
Key Benefits
• 100% heat rejection guarantee
• Reliable
• Compact
• Anti freezing
KEN Characteristics
• Counter flow, axial fan, induced draft
• CTI Standard STD-201(21) Coil Design
• Capacity range100 - 3000KW (For single cell models, nominal R717 KW, suitable to container delivery)
Typical Applications
• Tight enclosures, sandy and windy area installations
• Limited plan area installations
• Indoor installations
• Dry operation in winter time
• Anti-freezing in cold winter area

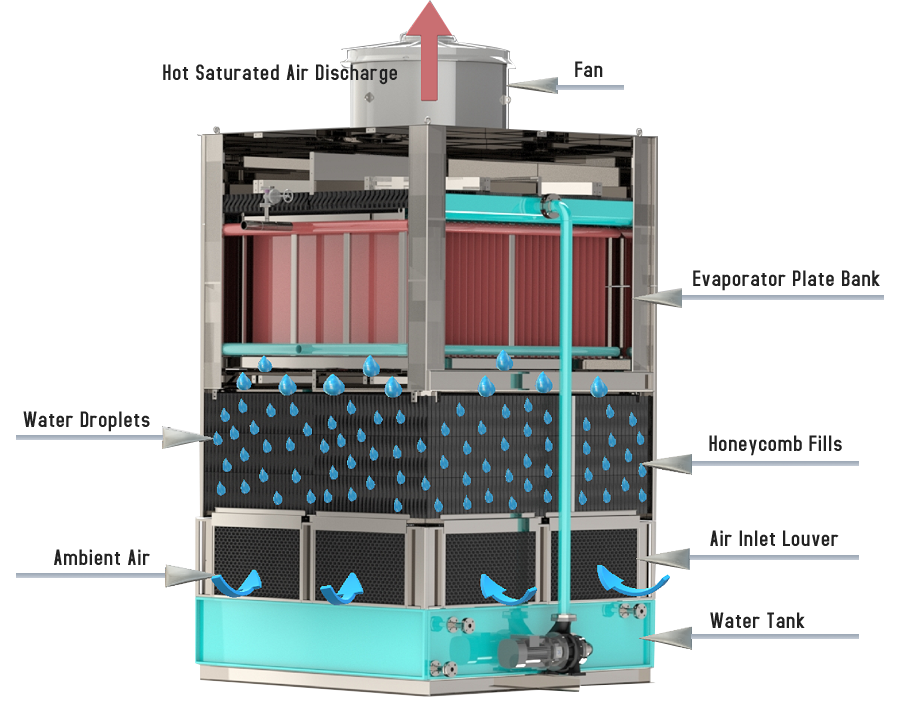

PRINCIPLE OF OPERATION
The refrigerant gas discharges from the compressor into the inlet connection of the KEN evaporative condenser. Water from the condenser's sump circulates over the condenser coil, while ambient air is simultaneously drawn the air stream. The evaporative process cools the spray water, which in turn cools the tubes containing the refrigerant gas. The cool tube walls cause the refrigerant gas to give up heat and condense into a liquid. The condensed liquid flows out of the coil, to the high-pressure liquid receiver for return to the system. The hot, saturated discharge air is drawn through the drift eliminators and discharged into the atmosphere. The unevaporated water falls into the basin and recirculates to the water distribution system above the condensing coil section.

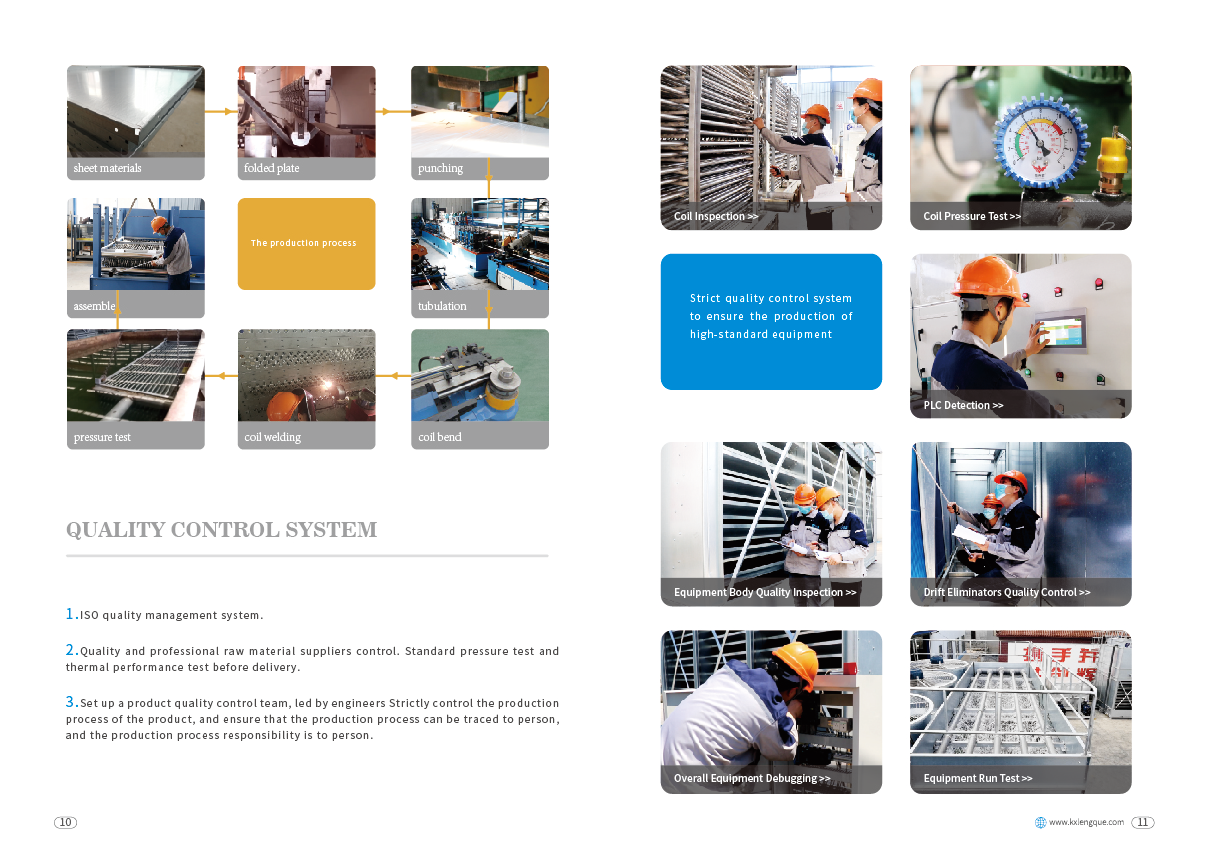

PRODUCT QUALIFICATION
CASEN adheres to technological innovation and green development, and has successively obtained ISO quality management system certification, occupational health and safety management, environmental management and other system certifications, one-time through the cooling tower CTI certification, SGS, TUV, CE, EAC certification, won 54 patents, became ATLAS, Hisense Group, Gree Group and other supporting suppliers.
Equipment Model | long | Width | High (without fan) | Fan | Spray | ||||
Power | Number of units | Single unit air volume | Power | Number of units | Flow | ||||
KEN-600 | 2360 | 1800 | 3550 | 4.0 | 1 | 55000 | 1.5 | 1 | 70 |
KEN-700 | 2360 | 1800 | 3790 | 4.0 | 1 | 55000 | 1.5 | 1 | 70 |
KEN-800 | 2360 | 2200 | 3790 | 5.5 | 1 | 70000 | 2.2 | 1 | 84 |
KEN-900 | 2860 | 2200 | 3790 | 5.5 | 1 | 75000 | 2.2 | 1 | 84 |
KEN-1000 | 2860 | 2200 | 3790 | 5.5 | 1 | 75000 | 2.2 | 1 | 84 |
KEN-1100 | 3500 | 2200 | 3810 | 4.0 | 2 | 55000 | 3.0 | 1 | 120 |
KEN-1200 | 3500 | 2200 | 3810 | 4.0 | 2 | 55000 | 3.0 | 1 | 120 |
KEN-1300 | 4250 | 2200 | 4250 | 5.5 | 2 | 70000 | 3.0 | 1 | 150 |

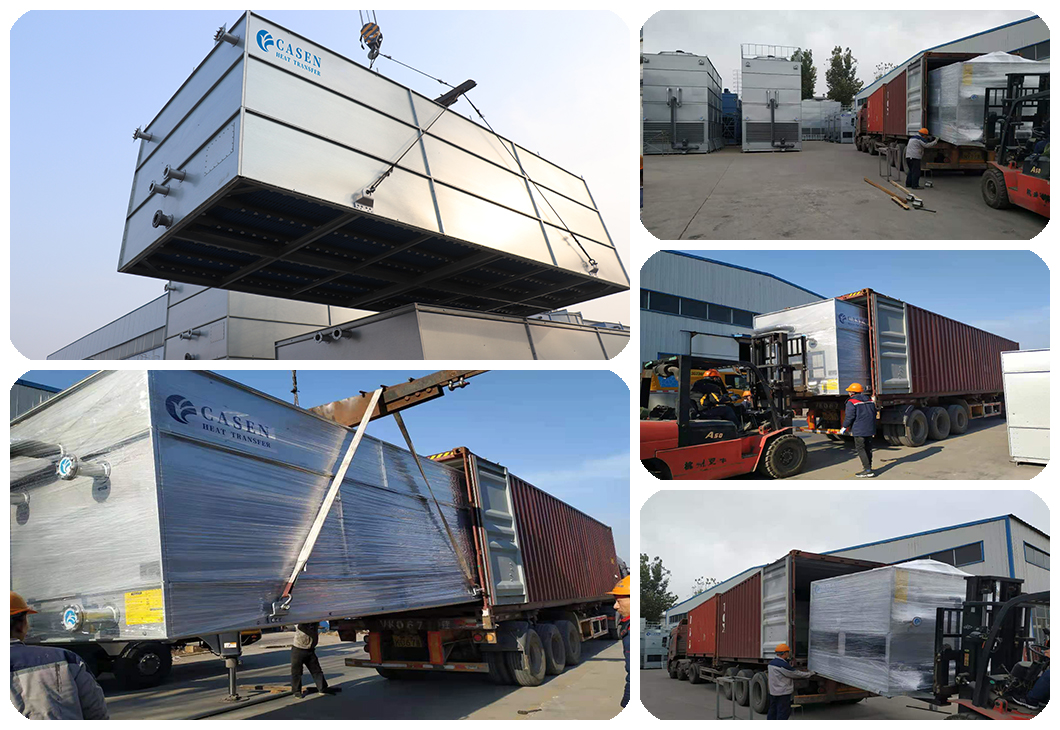

TRANSPORTATION

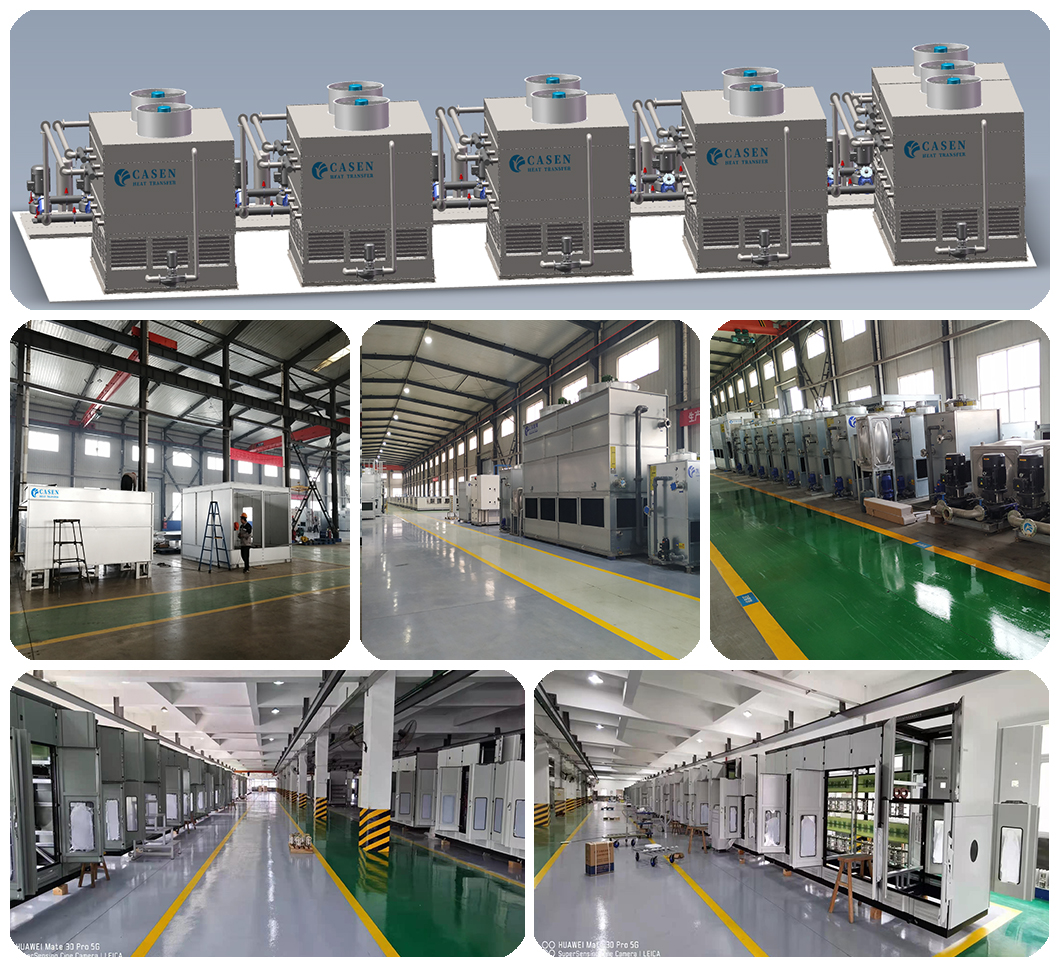

COMPANY PROFILE
Shandong Casen Heat Transfer Technology CO,.Ltd
Over the past decade, CASEN has rapidly developed in industrial evaporative and air-cooled cooling, committed to delivering high-quality, customized solutions. Our passionate, professional, and efficient team has earned strong customer trust and recognition.
CASEN upholds a culture of integrity, loyalty, and customer-first values. We believe customer satisfaction ensures sustainable growth, and we never take trust for granted. Innovation and environmental responsibility are at the heart of our development—driving energy-saving technologies and reducing carbon emissions.
With over 1,000 cases across industries, CASEN offers intelligent, energy-efficient solutions tailored to customer needs. We aim to make your work easier and the world greener, consistently delivering reliable, forward-thinking services. Thank you for your continued trust and inspiration.
