Product Details
Customization: Available
Condensation Forms:Water-Cooled
Refrigerant: R717, R22 or R134A
Shipping
Shipping Cost:Contact the supplier about freight and estimated delivery time.
Basic Info.
Model NO. | KEN | Material | SS304 or Carbon Steel |
Structural Form | Horizontal | Heat Transfer Mode | Conductive |
Application Field | Dairy Cooling | Certification | ISO, CE, SGS |
Fill | PVC | Spraying Pump | Low Head Lift, Large Flow Rate |
Ship | by Container Assembly | Drift Rate | Less Than 0.002% |
Fan | Axial | Driven System | Weg/Siemens Motors |
Drift Eliminator | CPVC/PP | Coil | Ss/Red Copper/HDG |
Casing | Ss/Superdyma | Applaication Fields | Screw Compressor Cooling |
Package Size | 218cm *220cm * 375cm | Package Gross Weight | 3000kg |
Product Description

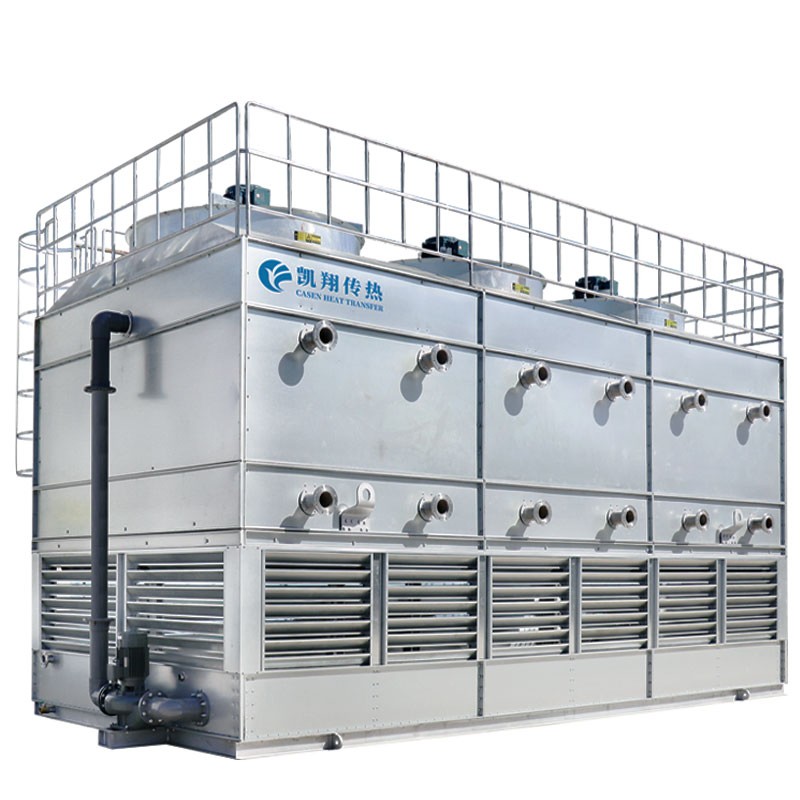

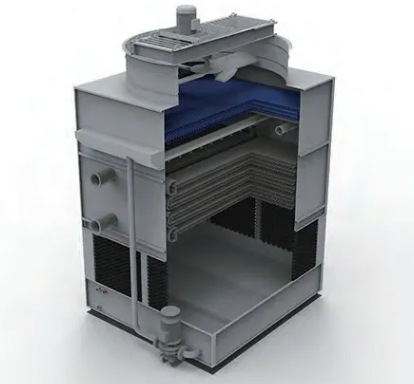

KEN- COUNTER FLOW TYPE EVAPORATIVE CONDENSER
As a typical counter flow evaporative condenser, KEN evaporative condenser offered excellent heat transfer ability. Compact structure design and lower power, make it easier for the confined space shipment and installation. KEN evaporative condenser can be used in all outdoor applications, especially in high temperature fluid process and dirty environment. And the unit can also operate in dry mode without water during low load and cold weather.
Specification
Product Characteristics and Advantages
Key Benefits
• 100% heat rejection guarantee
• Reliable
• Compact
• Anti freezing
KEN Characteristics
•Counter flow, axial fan, induced draft
• CTI Standard STD-201(21) Coil Design
• Capacity range100 - 3000KW (For single cell models, nominal R717 KW, suitable to container delivery)
Typical Applications
• Tight enclosures, sandy and windy area installations
• Limited plan area installations
• Indoor installations
• Dry operation in winter time
• Anti-freezing in cold winter area

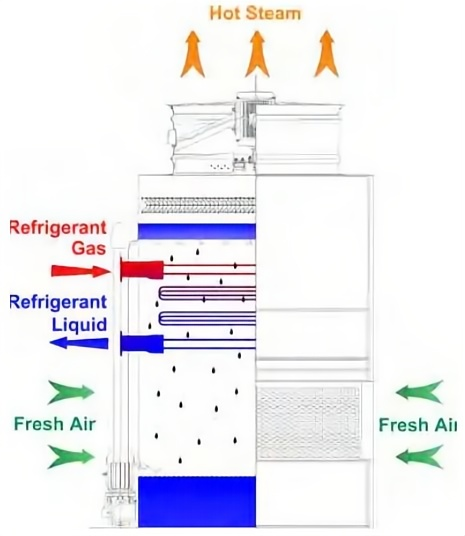

PRINCIPLE OF OPERATION
The refrigerant gas discharges from the compressor into the inlet connection of the KEN evaporative condenser.
Water from the condenser's sump circulates over the
condenser coil, while ambient air is simultaneously drawn the air stream.
The evaporative process cools the spray water, which in turn cools the tubes containing the refrigerant gas. The cool tube walls cause the refrigerant gas to give up heat and condense into a liquid. The condensed liquid flows out of the coil, to the high-pressure liquid receiver for return to the system. The hot, saturated discharge air is drawn through the drift eliminators and discharged into the atmosphere. The unevaporated water falls into the basin and recirculates to the water distribution system above the condensing coil section
| Counterflow evaporation cooling parameters | ||||||||
| Model | DN | Fan | Spray | |||||
| L | W | H | Power | Number Of Units | Single Unit Air Volume | Power | Number Of Units | |
| KEN-600 | 2360 | 2200 | 3550 | 4 | 1 | 55000 | 1.5 | 1 |
| KEN-700 | 2360 | 2200 | 3790 | 4 | 1 | 55000 | 1.5 | |
| KEN-800 | 2360 | 2200 | 3790 | 5.5 | 1 | 70000 | 2.2 | |
| KEN-1100 | 3500 | 2200 | 3810 | 4 | 2 | 55000 | 3 | |
| KEN-1200 | 3500 | 2200 | 3810 | 4 | 2 | 55000 | 3 | |
| KEN-1800 | 5640 | 2200 | 4250 | 5.5 | 3 | 70000 | 4 | |
| KEN-2200 | 7030 | 2200 | 4250 | 4 | 4 | 55000 | 5.5 | |
| KEN-2800 | 8060 | 2200 | 4250 | 5.5 | 4 | 70000 | 5.5 | |
Certifications
PRODUCT QUALIFICATION
CASEN adheres to technological innovation and green development, and has successively obtained ISO quality management system certification, occupational health and safety management, environmental management and other system certifications, one-time through the cooling tower CTI certification, SGS, TUV, CE, EAC certification, won 54 patents, became ATLAS, Hisense Group, Gree Group and other supporting suppliers.
