Product Details
Customization:Available
Cooling Method:Cross Flow
Ventilation Mode:Mechanical Ventilation
Shipping
Shipping Cost:Contact the supplier about freight and estimated delivery time.
Basic Info
| Model NO. | KCT-Part | Material | Metal |
| Air Contact Form | Wet | Air Contact Way | Closed |
| Tower Shape | Square | Noise Level | Low |
| Application Fields | Industrial | Certification | ISO, CE, CCC |

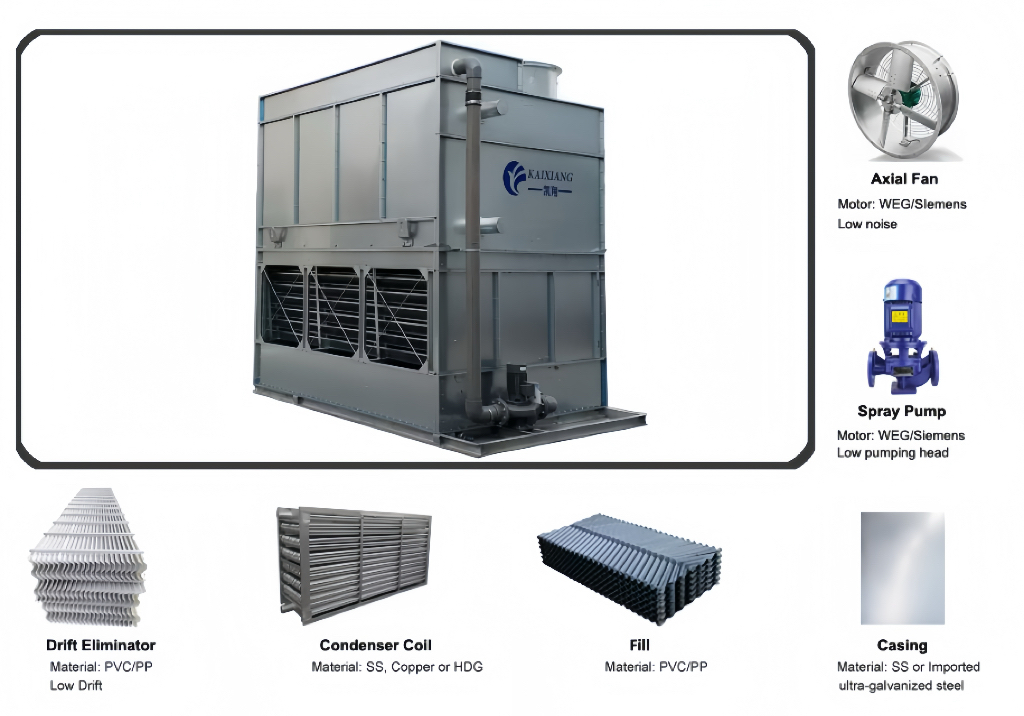

| Condition | New | Casing | Ss/Ulta-Galvanized/Superdyma |
| Coil | Ss/Red Copper | Drift Eliminator | CPVC/PP |

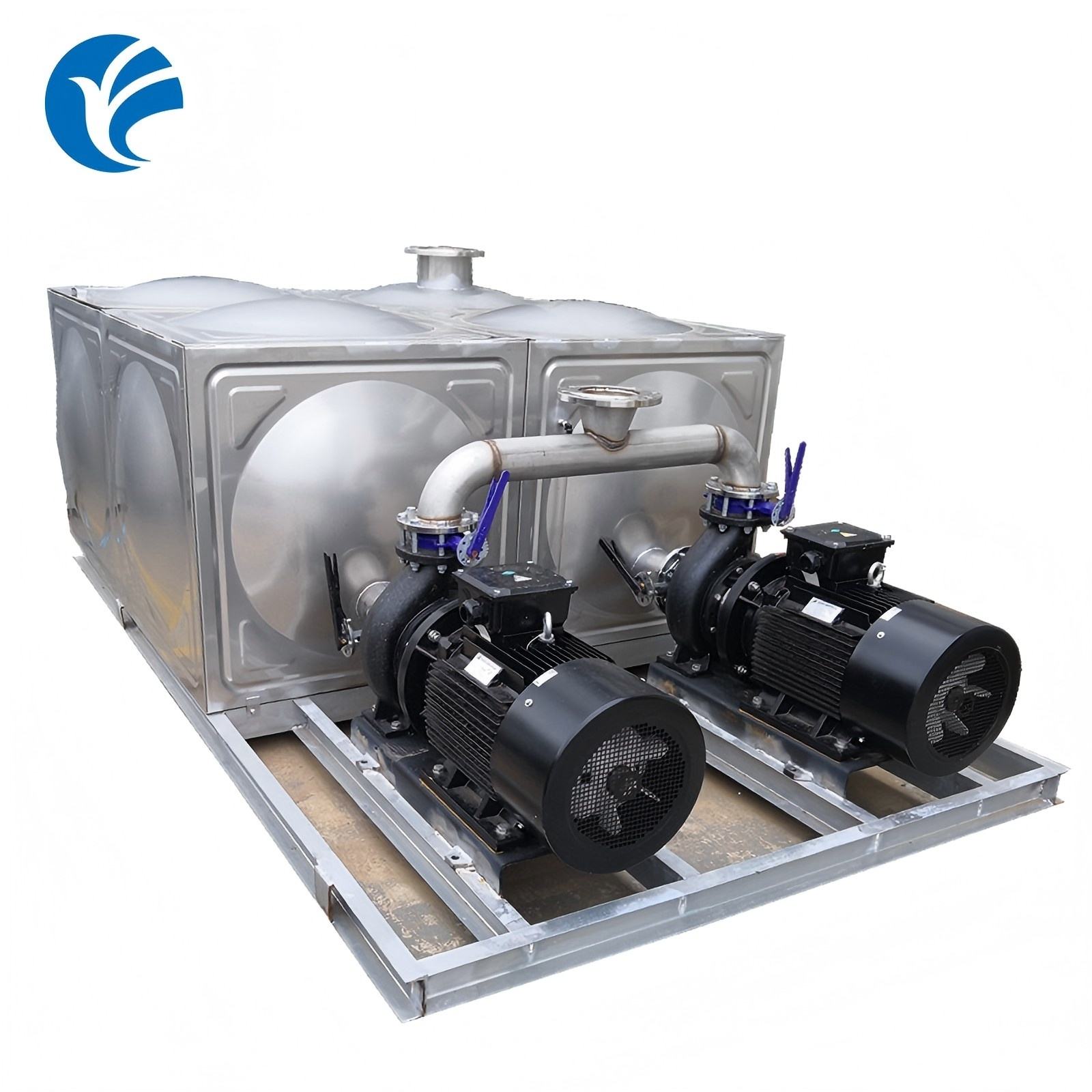

| Water Tank | Ss, Size Customized | Driven System | Driven System |

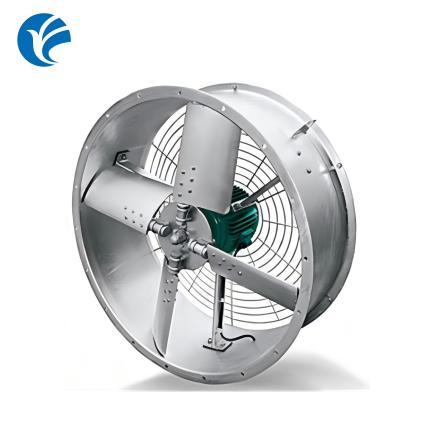

| Fan | Axial Flow Type,Maintenance Free | Spraying Pump | Low Head Lift, Large Flow Rate |
| Transport Package | Container | Specification | Customized |
| Trademark | CASEN | Origin | China |
| HS Code | 84198990 | Production Capacity | 200sets/Month |
Packaging & Delivery
Package Size：1000.00cm * 220.00cm * 490.00cm
Package Gross Weight：3000.000kg
Product Description

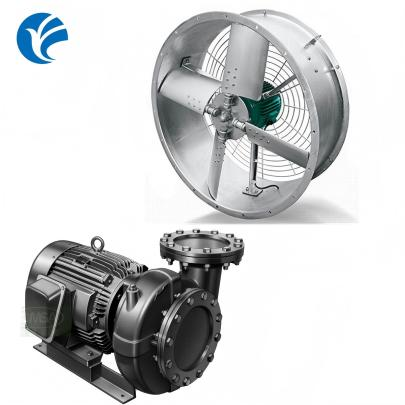

Cooling Tower Fan And Float Valve Cooling Tower Parts
General Description
Closed cooling tower is a heat exchanger between air and water/process fluid, and it can reduce the circulating water/process fluid temperature in heat exchange coil.
Closed cooling tower can be widely used to different fields of industry and HVAC.

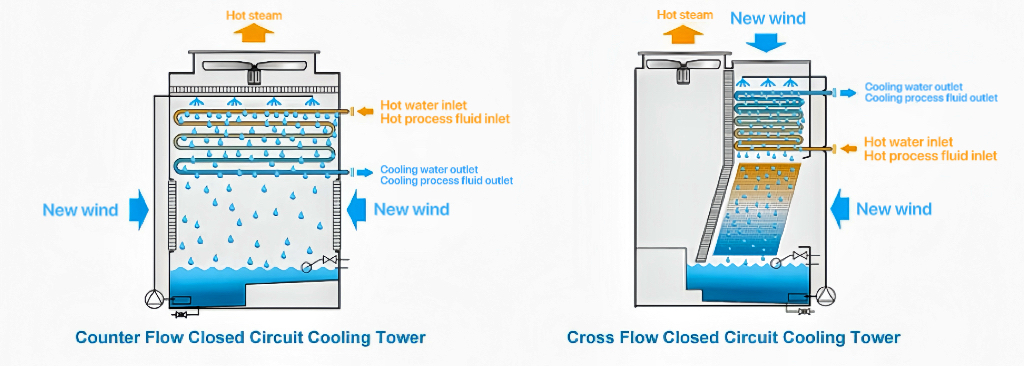

Different applications need different types closed cooling tower, such as crossflow type and counterflow type.
We will help to choose the right type for your project.
Features
In the closed cooling tower, the circulating water/process fluid is cold in the heat exchange coil, so it can keep clean and contaminate free.
For more advantage details, please contact me directly.
TECHNICAL SPECIFICATIONS
The dimension of our closed cooling towers are designed according to container for sea shipment.
Specification of counter flow closed cooling tower as below:
Model | Rated Capacity | Fan | Spraying Pump | Operation Weight | ||||
Qty. | Power | Air Volume | Qty.
| Power | Flow Rate | |||
RT | KW | m³/h | KW | m³/h | KG | |||
KCN-15 | 15 | 1 | 1*1.1 | 1*15000 | 1 | 1*1.1 | 1*36 | 1280 |
KCN-25 | 25 | 1 | 1*1.1 | 1*15000 | 1 | 1*1.1 | 1*36 | 1550 |
KCN-35 | 35 | 1 | 1*1.1 | 1*15000 | 1 | 1*1.1 | 1*36 | 2100 |
KCN-45 | 45 | 2 | 2*1.1 | 2*15000 | 1 | 1*1.1 | 1*53 | 2300 |
KCN-55 | 55 | 2 | 2*1.5 | 2*18500 | 1 | 1*1.1 | 1*53 | 2550 |
KCN-65 | 65 | 2 | 2*1.5 | 2*18500 | 1 | 1*1.1 | 1*53 | 2600 |
KCN-80 | 80 | 2 | 2*2.2 | 2*26000 | 1 | 1*1.1 | 1*53 | 3400 |
KCN-90 | 90 | 1 | 1*5.5 | 1*60000 | 1 | 1*1.5 | 1*70 | 3800 |
KCN-105 | 105 | 1 | 1*5.5 | 1*60000 | 1 | 1*1.5 | 1*70 | 4200 |
KCN-125 | 125 | 1 | 1*5.5 | 1*80000 | 1 | 1*1.5 | 1*70 | 5380 |
KCN-135 | 135 | 1 | 1*7.5 | 1*90000 | 1 | 1*1.5 | 1*70 | 5800 |
Note: the 'Rated Capacity' based on standard condition: water inlet and outlet temp. 37-32degC, wet bulb temp. 28degC. | ||||||||
APPLICATIONS
Closed Cooling Tower can be widely used for industry of refrigeration, oil & chemical, power generation and metallurgy.
APPLICATIONS
Closed Cooling Tower can be widely used for industry of refrigeration, oil & chemical, power generation and metallurgy.
Since established in 2008, Casen Heat Transfer Co.,Ltd is a professional manufacturer and OEM & ODM supplier of cooling tower.
By now, our company had passed ISO9001, ISO14001 and OHSAS18001.
And we also got 21 patents and certificates of CE, PED & SGS.
Our products had been exported to more than 30 countries and enjoy a good reputation.
We look forward the next reliable cooperator from here
