Product Details
Customization:Available
Cooling Method:Cross Flow Counter Flow
Ventilation Mode:Mechanical Ventilation
Shipping
Shipping Cost:Contact the supplier about freight and estimated delivery time.
Basic Info.
Model NO. | Casen | Material | Metal |
Air Contact Form | Wet | Air Contact Way | Open |
Tower Shape | Round/Square | Noise Level | Low |
Application Fields | Industrial | Certification | RoHS, UR, ISO, CE, CCC, CTI |
Condition | New | Spraying Pump | Low Head Lift, Large Flow Rate |
Drift Rate | Less Than 0.002% | Type | Cross Flow and Counter Flow |
Fan | Axial Flow and Counter Flow | Driven System | Weg/Siemens Motors |
Drift Eliminator | CPVC/PP | Coil | Ss/Red Copper |
Transport Package | Container | Specification | 30ton |
Package Size | 295*295*375cm | Package Gross Weight | 3000kg |
Product Description

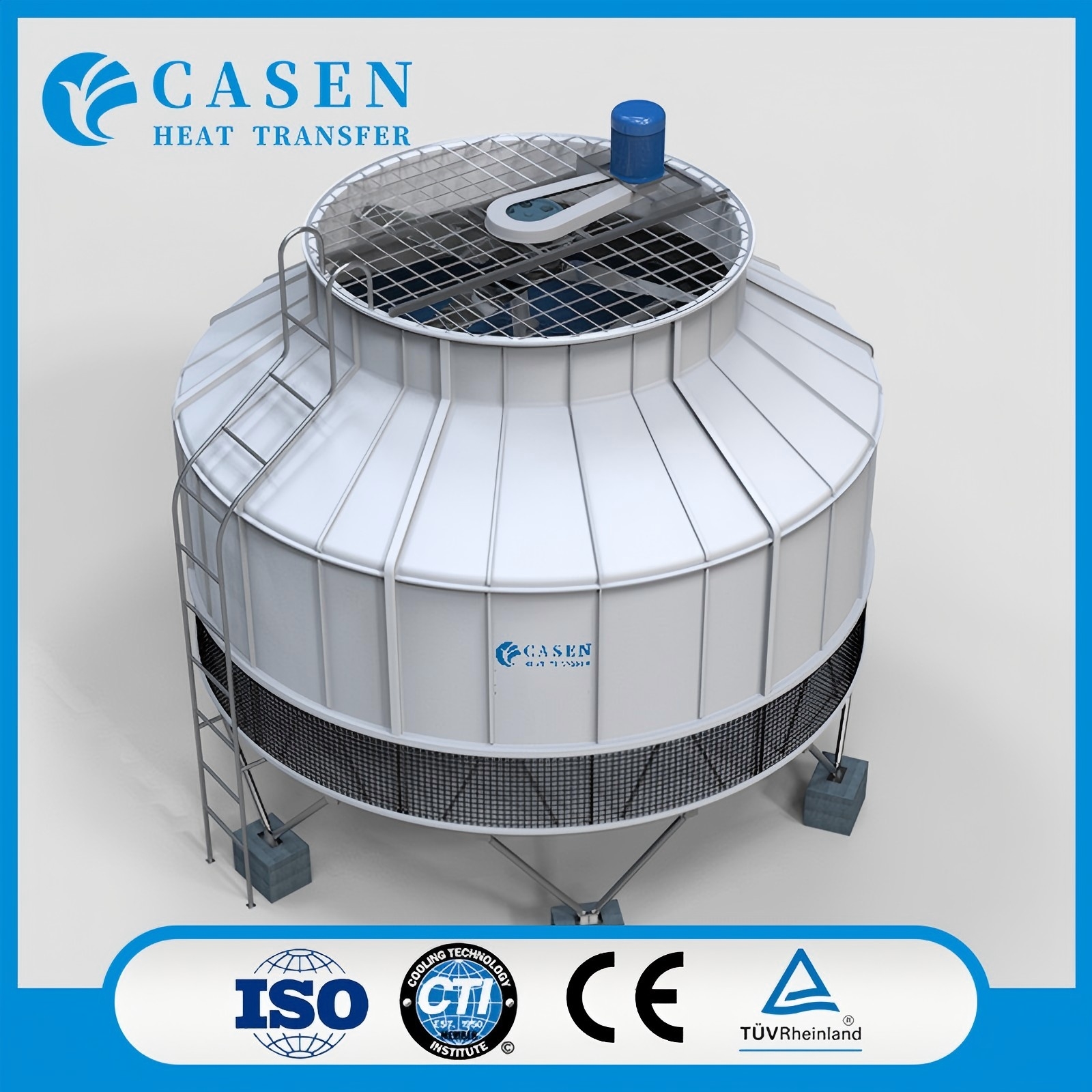

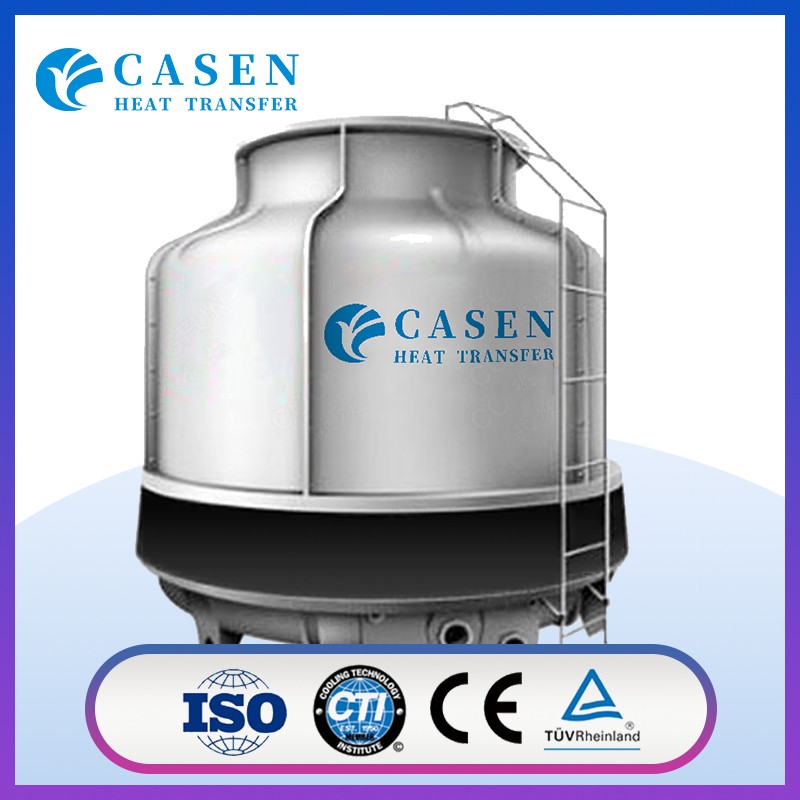

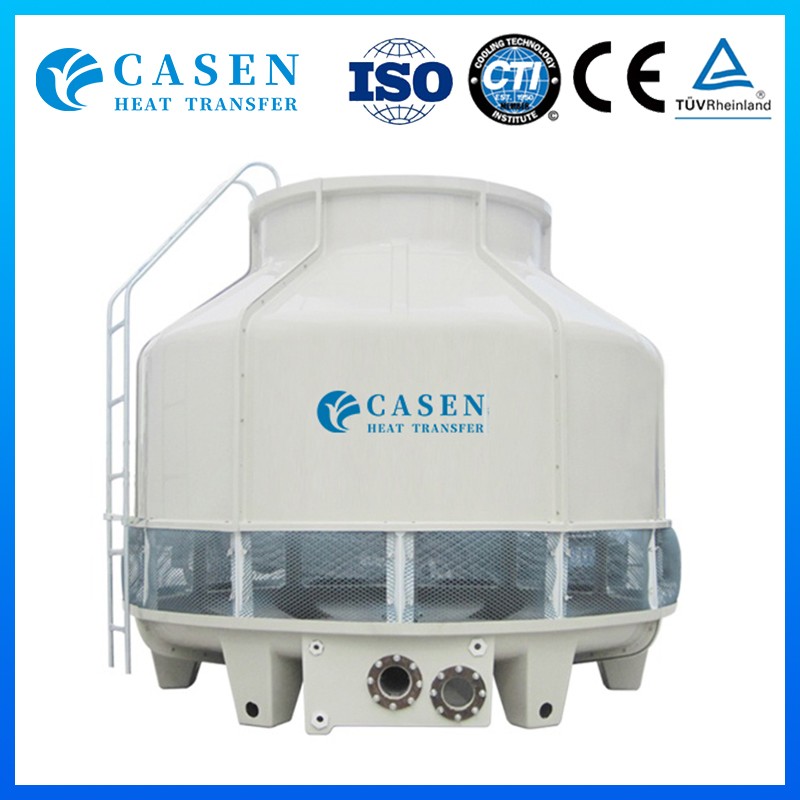

OPEN COOLING TOWER
Product Introduction of open cooling tower
Open cooling systems incorporate a pond or cooling tower for heat removal. Warm water picked up from the process via heat exchangers is returned to the pond or tower and heat is removed through evaporation of a portion of the cooling water.
Open cooling towers are indispensable equipment in modern industry. They are applied in almost all scenarios that require safe and efficient elevated work, such as construction, industry and manufacturing, power and energy, etc.
Design Structure And Features

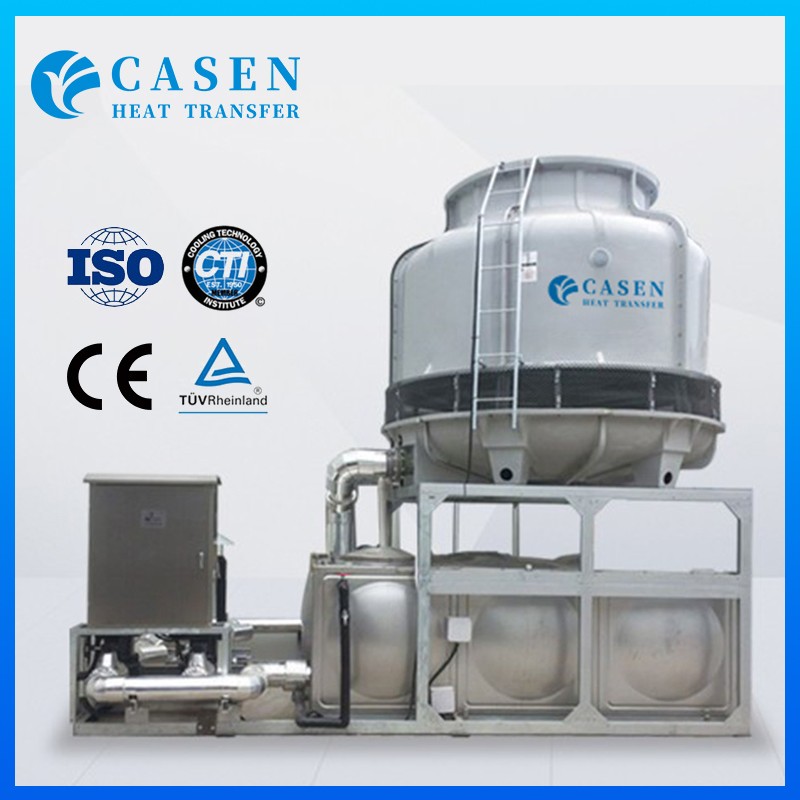

Circulation pump
The suction inlet of the circulation pump should be located below the water level of the water collection basin in the cooling tower. The outlet pipe of the cooling tower must not be higher than the highest water level of the water collection basin.
PVC material
The axial-flow fan is made of PVC material, featuring ample air volume, low noise, low rotational speed and low energy consumption. The heat dissipation is achieved through honeycomb-shaped vacuum-molded PVC or PP fillers.
Characteristics
1.Low Noise
PVC fills make high work efficiency and also can reduce the noisy of spray drops. Configure low noisefans.
2.Avoiding scaling
The spray water's temperature is lower than scaling temperature, smooth flow the cooling coil andthe coils are damped completely, highly reduce scaling.
3.Convenient Maintenance
Modular design is easy to assemble, disassemble and maintenance.There is a maintenance passageinside the tower.lt can be repaired and cleaned without stopping the machine.There aremaintenance ladder and fence,which are convenient for staff to examine and repair.
Specification
Principle of Operation

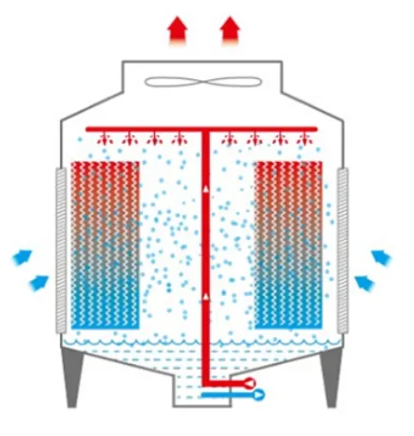

In the cross-flow cooling water tower, the water falls from the top, the flow of air and the flow of water flow into a vertical flow, due to the relationship between the transverse air intake, so the distance between the part of the cooling material and the bottom water tray is very close, reducing the noise of the water falling.
Model | Dimension | Fan | |||||
W | L | H | Dia | Motor | Volume | Number of blades | |
mm | mm | mm | Φmm | KW | m³/h | ||
KKH-100 | 3500 | 2000 | 3455 | 1600 | 3 | 43400 | 4 |
KKH-125 | 3700 | 2100 | 3455 | 1800 | 4 | 62000 | 4 |
KKH-250 | 4700 | 3250 | 4550 | 2800 | 7.5 | 150000 | 6 |
KKH-300 | 5100 | 3650 | 4650 | 3200 | 11 | 180000 | 6 |
KKH-600 | 6100 | 4900 | 4700 | 3800 | 22 | 265000 | 6 |
KKH-700 | 6300 | 5200 | 4700 | 4000 | 22 | 330000 | 6 |
