Product Details
Customization: Available
Cooling Method: Counter Flow
Ventilation Mode: Mechanical Ventilation
Basic Info.
Model NO. | Open FRP Cooling Tower | Cooling Method | Counter Flow |
Ventilation Mode | Mechanical Ventilation | Material | FRP |
Air Contact Form | Wet | Air Contact Way | Open |
Tower Shape | Square | Noise Level | Low |
Certification | ISO, CE, SGS | Condition | New |
Transport Package | Container | Specification | 15RT-335RT |
Origin | China | Production Capacity | 500sets/Month |
Package Size | 218* 220 * 375cm | Package Gross Weight | 1000kg |
Product Description

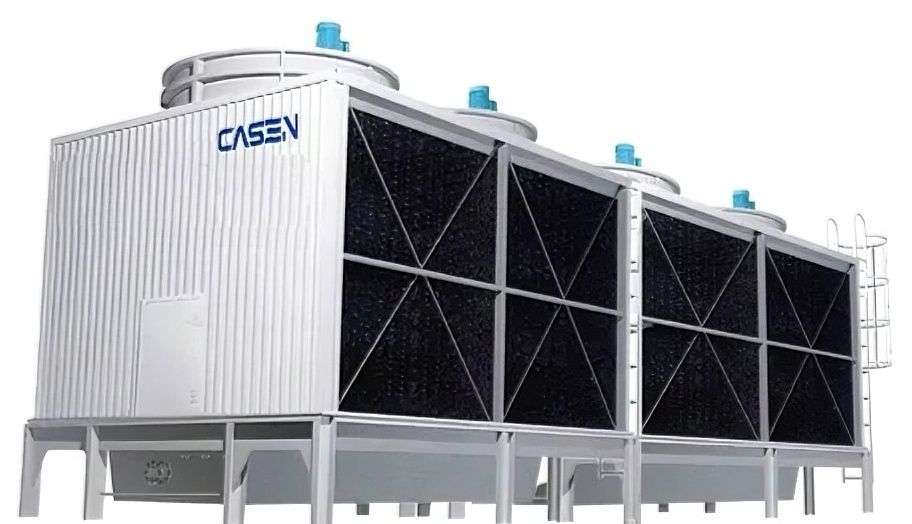

OPEN COOLING TOWER
Product Introduction of open cooling tower
Open cooling systems incorporate a pond or cooling tower for heat removal. Warm water picked up from the process via heat exchangers is returned to the pond or tower and heat is removed through evaporation of a portion of the cooling water. Open cooling towers are indispensable equipment in modern industry. They are applied in almost all scenarios that require safe and efficient elevated work, such as construction, industry and manufacturing, power and energy, etc.
Characteristics
1.Low Noise
PVC fills make high work efficiency and also can reduce the noisy of spray drops. Configure low noise fans.
2.Avoiding scaling
The spray water's temperature is lower than scaling temperature, smooth flow the cooling coil and the coils are damped completely, highly reduce scaling.
3.Convenient Maintenance
Modular design is easy to assemble, disassemble and maintenance. There is a maintenance passage inside the tower. It can be repaired and cleaned without stopping the machine. There are maintenance ladder and fence, which are convenient for staff to examine and repair.

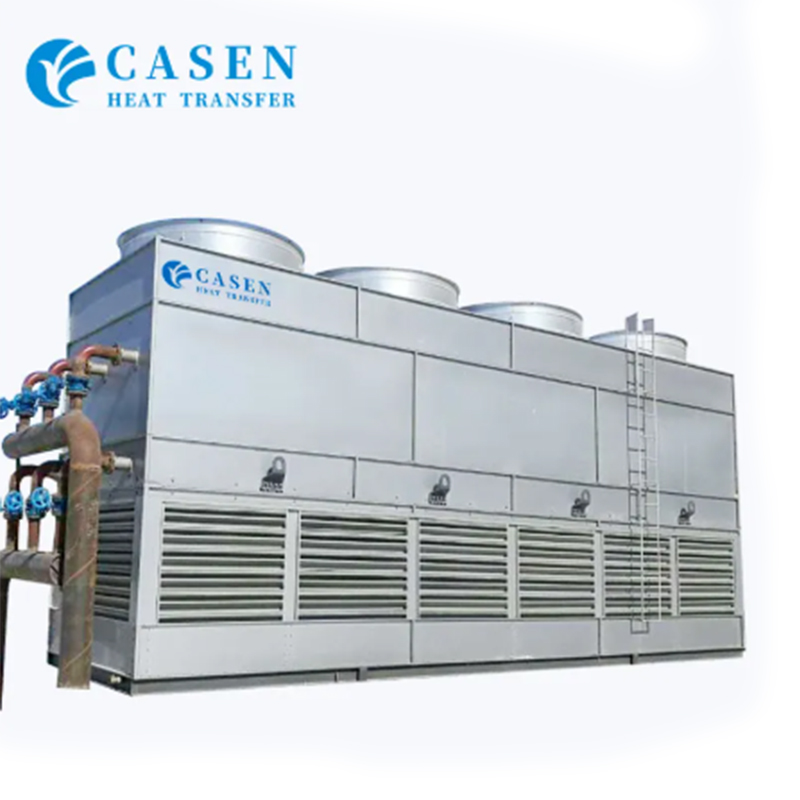

Crossflow Open Cooling Tower
An open cooling tower is a heat exchanger that in order to cool down water makes use of the direct contact with the air. The heat transfer occurs partially thanks to a heat exchange between air and water, but mainly thanks to the evaporation of a small quantity of the water that needs to be cooled.
Principle of Operation
In the cross-flow cooling water tower, the water falls from the top, the flow of air and the flow of water flow into a vertical flow, due to the relationship between the transverse air intake, so the distance between the part of the cooling material and the bottom water tray is very close, reducing the noise of the water falling.
Model | Dimension | Fan | |||||
W | L | H | Dia | Motor | Volume | Number of blades | |
mm | mm | mm | Φmm | KW | m³/h | ||
KKH-100 | 3500 | 2000 | 3455 | 1600 | 3 | 43400 | 4 |
KKH-125 | 3700 | 2100 | 3455 | 1800 | 4 | 62000 | 4 |
KKH-150 | 3900 | 2650 | 3455 | 2000 | 5.5 | 92000 | 4 |
KKH-250 | 4700 | 3250 | 4550 | 2800 | 7.5 | 150000 | 6 |
KKH-300 | 5100 | 3650 | 4650 | 3200 | 11 | 180000 | 6 |
KKH-350 | 5100 | 3800 | 4650 | 3200 | 11 | 187500 | 6 |
KKH-600 | 6100 | 4900 | 4700 | 3800 | 22 | 265000 | 6 |
KKH-700 | 6300 | 5200 | 4700 | 4000 | 22 | 330000 | 6 |
KKH-800 | 7500 | 5500 | 5200 | 4000 | 30 | 360000 | 6 |
