Product Details
Customization: Available
Cooling Method: Cross Flow Counter Flow
Ventilation Mode: Mechanical Ventilation
Shipping
Shipping Cost:Contact the supplier about freight and estimated delivery time.
Basic Info.
Model NO. | Casen | Material | Metal |
Air Contact Form | Wet | Air Contact Way | Closed |
Tower Shape | Round and Square | Noise Level | Low |
Application Fields | Industrial | Certification | RoHS, UR, ISO, CE, CCC, CTI |
Condition | New | Spraying Pump | Low Head Lift, Large Flow Rate |
Ship | By Container Assembly | Drift Rate | Less Than 0.002% |
Type | Cross Flow and Counter Flow | Fan | Axial Flow and Counter Flow |
Driven System | Weg/Siemens Motors | Drift Eliminator | CPVC/PP |
Coil | Ss/Red Copper | Casing | Ss/Ulta-Galvanized/Superdyma |
Package Size | 295* 295* 375cm | Package Gross Weight | 3000kg |
Product Description

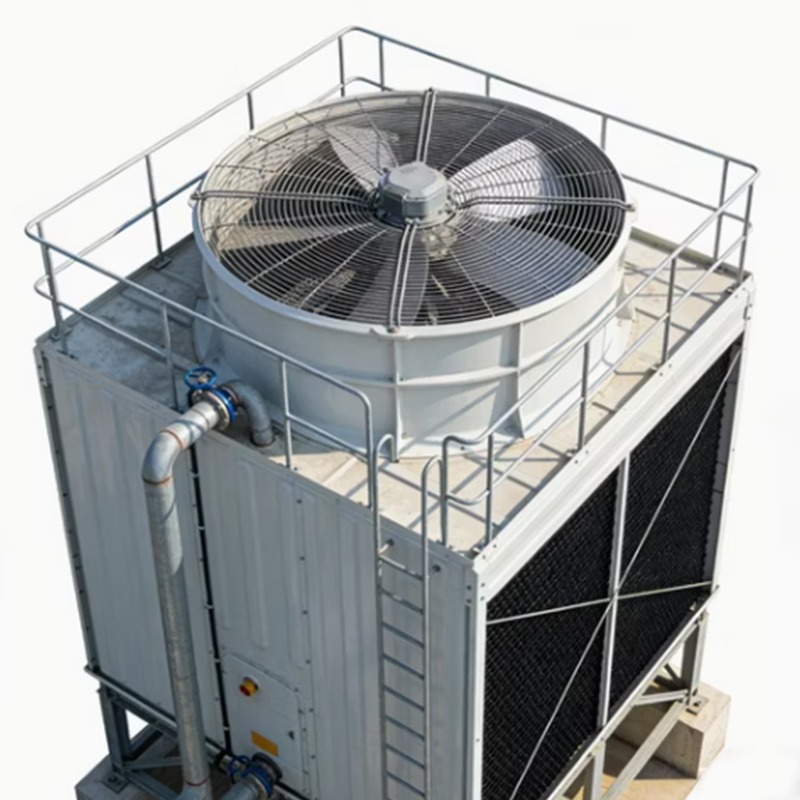

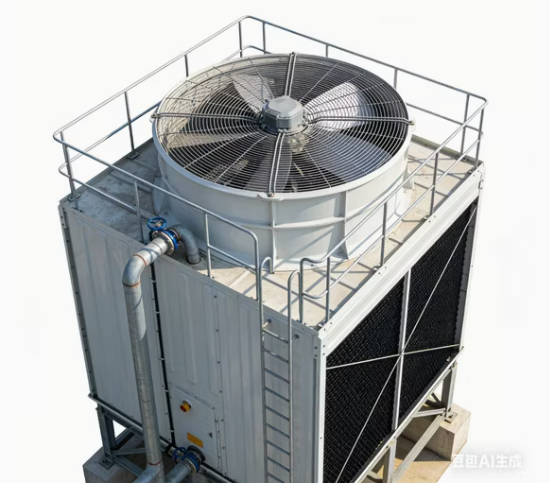

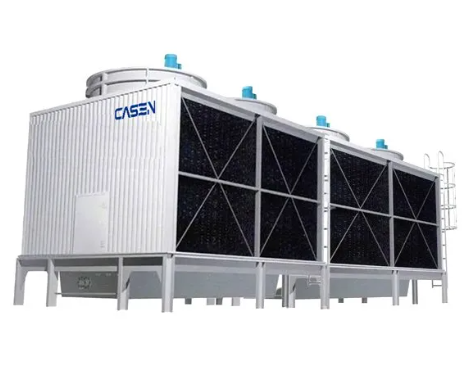

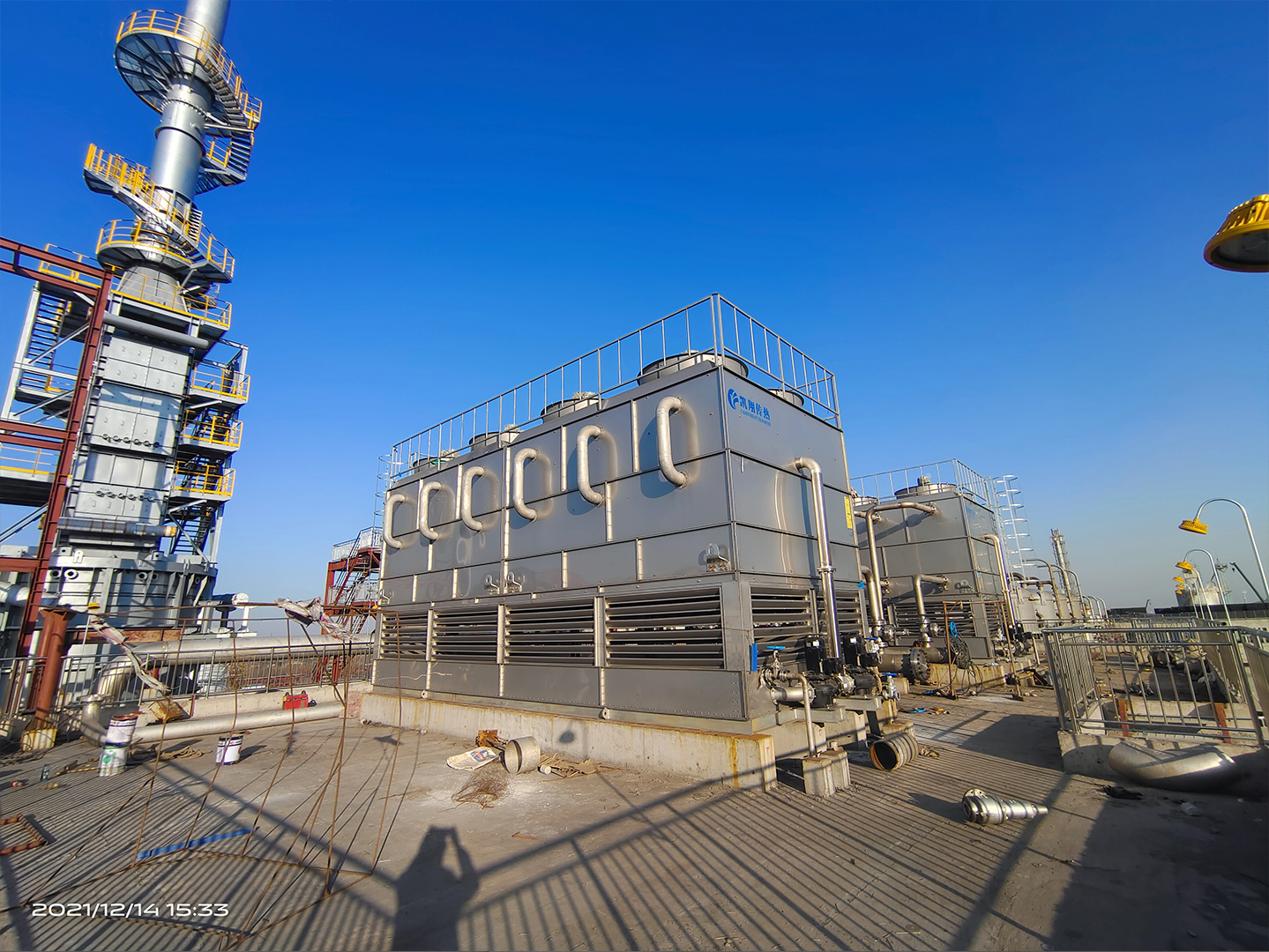

OPEN COOLING TOWER
Product Introduction of open cooling tower
Open cooling systems incorporate a pond or cooling tower for heat removal. Warm water picked up from the process via heat exchangers is returned to the pond or tower and heat is removed through evaporation of a portion of the cooling water.
Open cooling towers are indispensable equipment in modern industry. They are applied in almost all scenarios that require safe and efficient elevated work, such as construction, industry and manufacturing, power and energy, etc.
PVC material

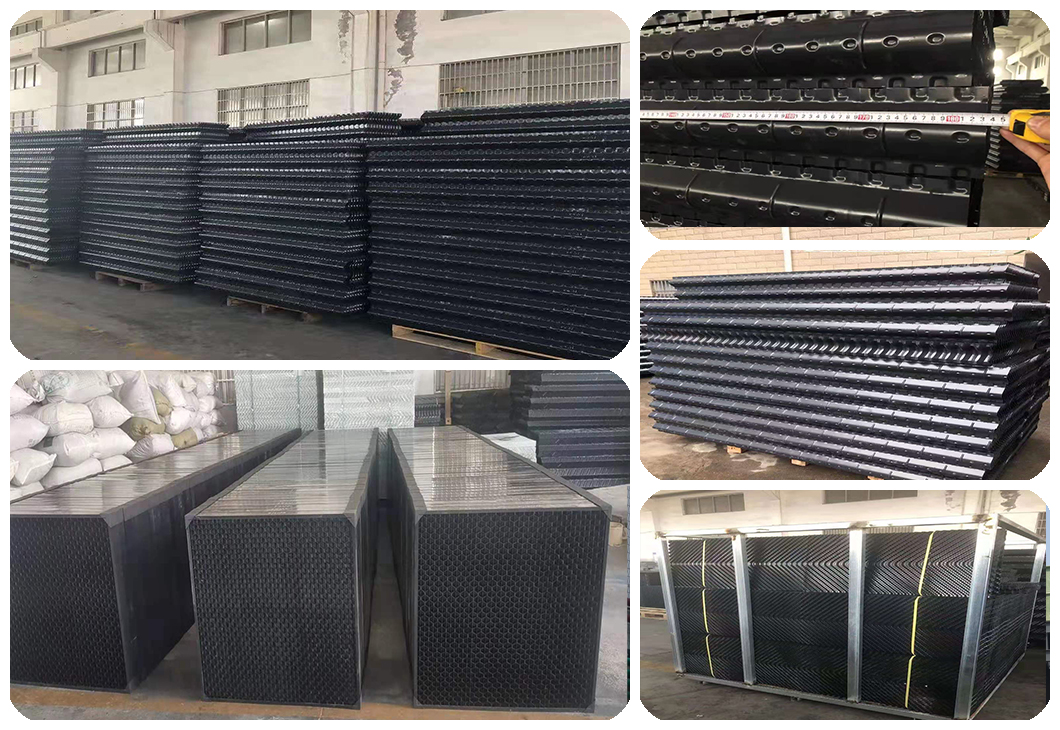

The axial-flow fan is made of PVC material, featuring ample air volume, low noise, low rotational speed and low energy consumption. The heat dissipation is achieved through honeycomb-shaped vacuum-molded PVC or PP fillers.

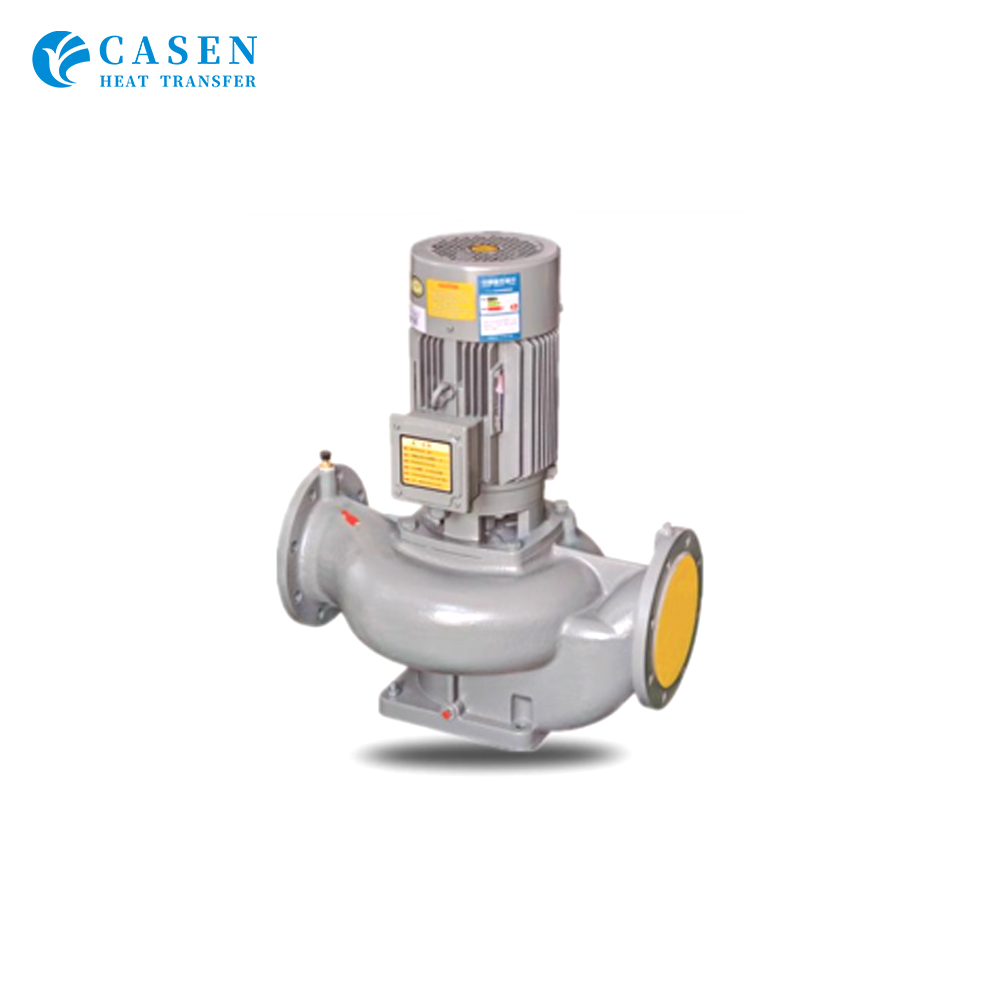

Circulation pump
TThe suction inlet of the circulation pump should be located below the water level of the water collection basin in the cooling tower. The outlet pipe of the cooling tower must not be higher than the highest water level of the water collection basin.
Characteristics
1.Low Noise
PVC fills make high work efficiency and also can reduce the noisy of spray drops. Configure low noisefans.
2.Avoiding scaling
The spray water's temperature is lower than scaling temperature, smooth flow the cooling coil andthe coils are damped completely, highly reduce scaling.
3.Convenient Maintenance
Modular design is easy to assemble, disassemble and maintenance.There is a maintenance passageinside the tower.lt can be repaired and cleaned without stopping the machine.There aremaintenance ladder and fence,which are convenient for staff to examine and repair.

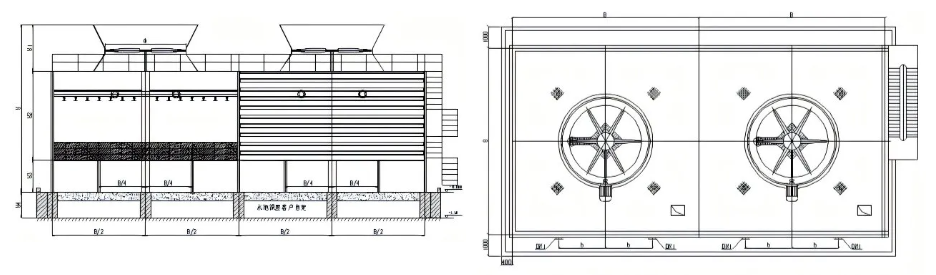

Model | Dimension | Fan | |||||
W | L | H | Dia | Motor | Volume | Number of blades | |
mm | mm | mm | Φmm | KW | m³/h | ||
KKH-100
| 3500 | 2000 | 3455 | 1600 | 3 | 43400 | 4 |
KKH-125 | 3700 | 2100 | 1800 | 4 | 62000 | ||
KKH-150 | 3900 | 2650 | 2000 | 5.5 | 92000 | ||
KKH-300 | 5100 | 3650 | 4650 | 3200 | 11 | 180000 | 6 |
KKH-350 | 3800 | 3200 | 11 | 187500 | |||
KKH-600 | 6100 | 4900 | 4700 | 3800 | 22 | 265000 | |
KKH-700 | 6300 | 5200 | 4000 | 22 | 330000 | ||
